HS2 Railway Bridge Concrete Reconstruction

Engineering the Future of the the UK Rail Network

High Speed 2 (HS2) represents the most significant upgrade to the UK’s transport infrastructure in a generation. The engineering tolerances required for this network are absolute; the infrastructure must be designed to withstand immense dynamic loading, severe aerodynamic forces and decades of relentless environmental exposure.

Structural Repairs was deployed to address critical concrete defects on a newly constructed railway bridge intersecting the HS2 route. This project required more than just standard structural remediation—it demanded exceptional material science expertise to restore both the load-bearing integrity and the precise architectural finish of the asset.

Call Us

Email Us

Enquire Now

The Challenge: The Complexity of Recycled Concrete

To align with modern sustainability and Scope 3 carbon reduction targets, the bridge was constructed using an advanced recycled concrete mix. While this is a highly sustainable and environmentally responsible choice, recycled concrete inherently presents profound engineering challenges.

It is notoriously difficult to achieve absolute uniformity in texture, porosity and colour. Furthermore, as the bridge neared completion, critical concrete defects and surface inconsistencies were identified across several structural sections. These defects required prompt, empirical remediation before the line became operational.

Structural Repairs was tasked with a dual mandate: execute a permanent structural reinstatement to guarantee the safety of the bridge, and engineer a bespoke colour-matching and refacing process to achieve flawless architectural uniformity.

The Diagnostic Assessment: Survey Before Surgery

True structural repair begins with data. Before any breakout or physical remediation commenced, our in-house engineering teams executed a forensic initial assessment of the bridge structure.

We meticulously evaluated every defective area to understand the exact depth, nature and pathology of the concrete deterioration. This deep diagnostic insight was critical. It ensured that our subsequent structural interventions were precision-targeted, eliminating guesswork and guaranteeing that the reinstatement would permanently fuse with the complex recycled matrix of the host structure.

Call Us

Email Us

Enquire Now

The Process: BS EN 1504 Compliant Reinstatement

Armed with precise diagnostic data, our specialist teams executed a phased remediation programme.

Structural Reinstatement We systematically broke out the defective concrete back to a sound matrix. The sections were then rebuilt using high-performance, shrinkage-compensated structural mortars, ensuring strict compliance with BS EN 1504 standards for concrete repair and protection. This guaranteed the underlying structural geometry and load-bearing capacity of the bridge were fully restored.
Bespoke Colour Matching and Refacing The architectural challenge required true innovation. Standard repair mortars would have left an unacceptable, patchwork appearance against the recycled concrete. Our material scientists engineered a customised colour-matching and refacing process. We custom-blended our finishing materials to perfectly mirror the unique texture, colour profile and visual aesthetic of the existing structure, applying the finish seamlessly across the repaired sections.

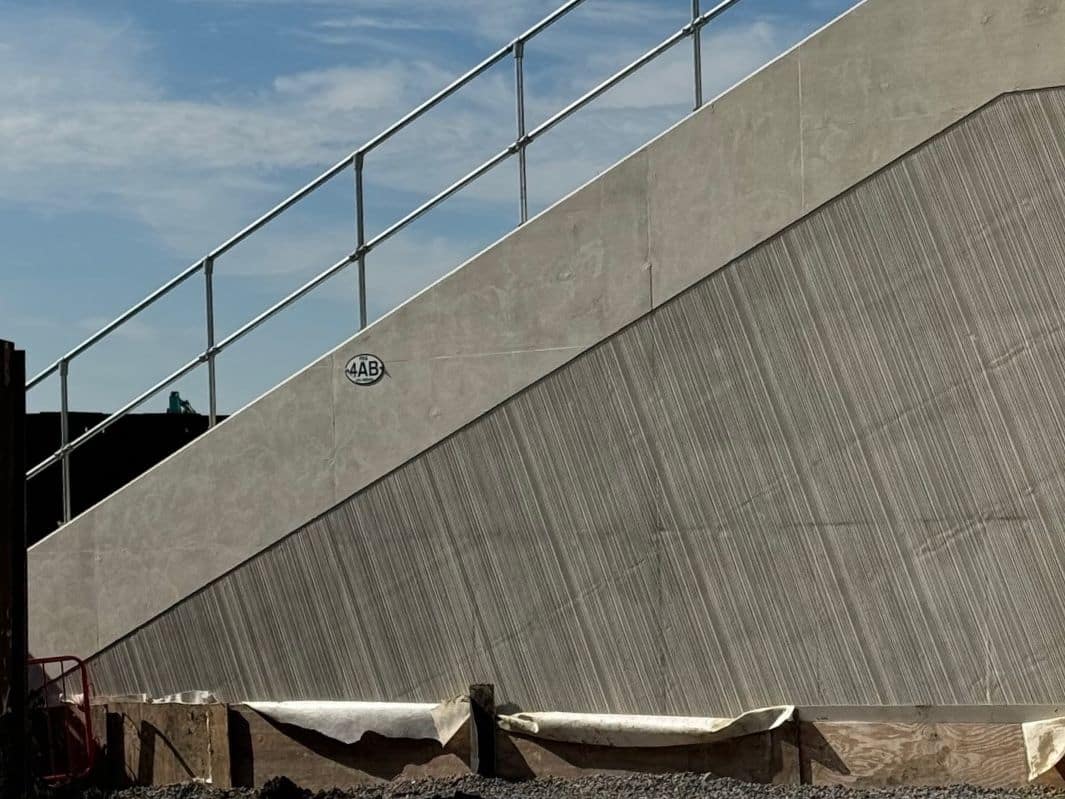

The Result: Seamless Structural Excellence

The remediation work executed by Structural Repairs delivered on every front:

Enhanced Structural Integrity: The hidden structural defects were permanently resolved, guaranteeing the safety, durability and dynamic load capacity of the bridge.
Flawless Aesthetic Finish: Our specialised colour-matching and refacing techniques resulted in a uniform, visually seamless finish that completely preserved the bridge’s architectural integrity.
Sustainable Life Extension: We successfully reinforced the project’s commitment to sustainability, proving that highly complex recycled concrete structures can be safely repaired and visually restored without compromising on tier-one engineering quality.

Structural Repairs demonstrated exceptional technical agility in addressing the unique challenges posed by the defective recycled concrete. The bridge now stands as a testament to both sustainable construction and world-class engineering execution.

Secure Your Critical Infrastructure

By partnering with an integrated specialist engineering contractor, emerging structural problems in critical infrastructure can be accurately diagnosed and permanently resolved, ensuring your operations remain uninterrupted.

Get in touch with Structural Repairs today to explore how our advanced concrete remediation and non-destructive scanning services can secure your assets.
