Securing Belfast’s Iconic Maritime Infrastructure

The Harland & Wolff dry docks in Belfast are a cornerstone of global maritime history. Famous worldwide as the birthplace of the RMS Titanic, and dominated today by the iconic yellow gantry cranes, Samson and Goliath, this colossal marine infrastructure was engineered to construct and maintain the largest vessels on earth.

However, operating in a relentless intertidal marine environment subjects concrete infrastructure to the most aggressive chemical and physical stresses imaginable. Over decades of constant exposure to saltwater, the structural concrete forming the massive dock walls had suffered severe, deep-seated degradation.

Structural Repairs was engaged to review the asset, bringing our engineering-led approach to halt the deterioration and permanently reinstate the load-bearing integrity of these historic marine retaining walls.

Call Us
Email Us
Enquire Now

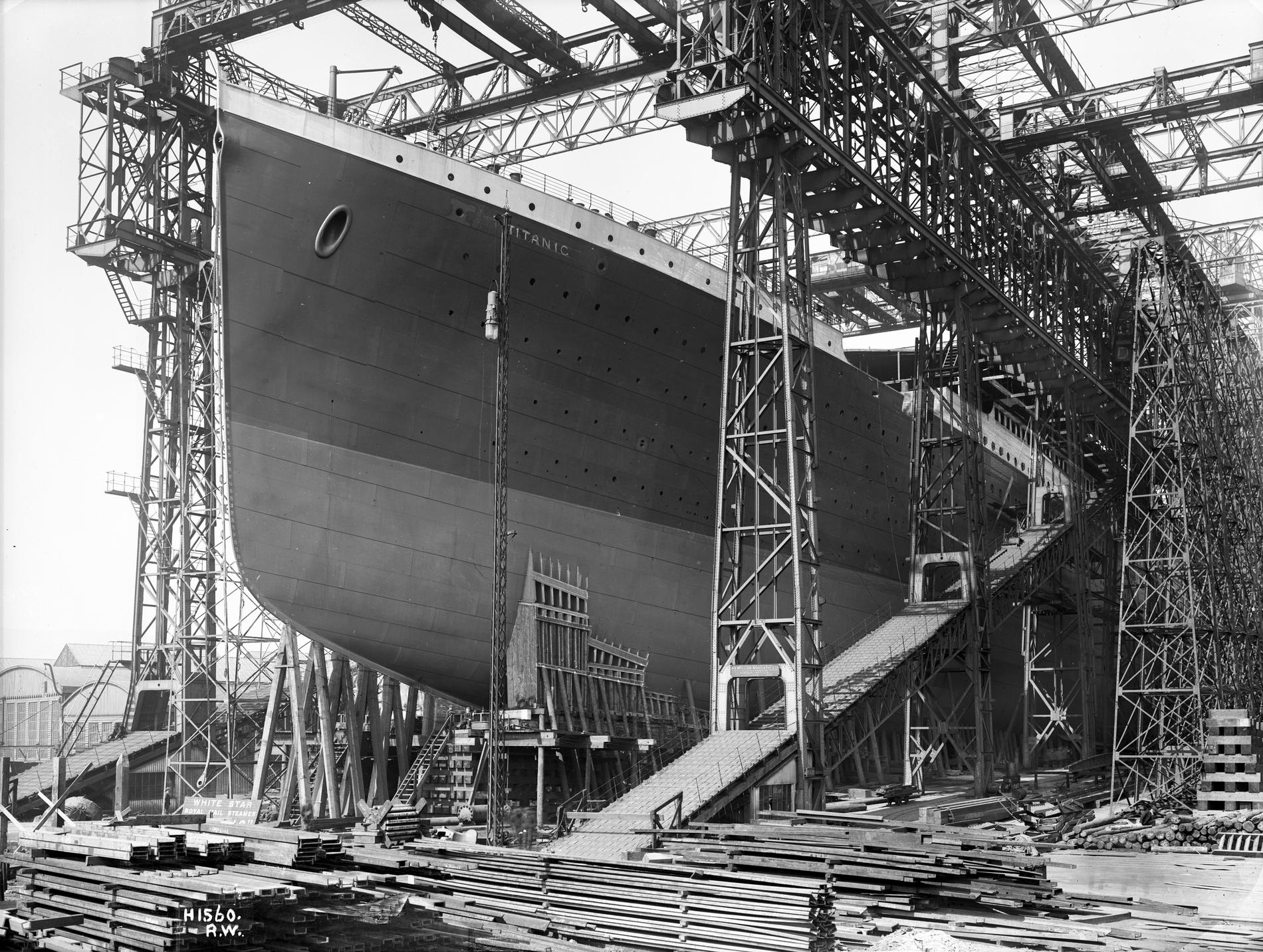

Glory days. RMS Titanic nearing completion in the Harland & Wolff shipyard in Belfast

Glory days. RMS Titanic nearing completion in the Harland & Wolff shipyards in Belfast

ClientHarland & Wolff
AssetHistoric Dry Docks, Belfast
EnvironmentAggressive Marine Intertidal Zone
InterventionRebar Splicing, Marine Reinstatement & Cathodic Protection
ObjectiveHalt chloride-induced rust jacking and restore load-bearing capacity to BS EN 1504 standards

Sewage & Pollution Control
The Chemical War

Visual inspections of the dock walls revealed a dramatic structural pathology. Massive sections of the concrete face had blown off completely, exposing dense grids of internal steel reinforcement.

The root cause of this failure was textbook chloride-induced corrosion.

Over decades, saltwater had penetrated the porous concrete matrix. When these chloride ions reached the internal steel reinforcement, they broke down its natural passivity and initiated rapid oxidation. As steel rusts, it expands with immense kinetic force – up to seven times its original volume. This phenomenon, known as rust jacking, created uncontrollable internal tensile stress, systematically shattering the concrete face and resulting in the massive spalling visible across the site.

In a marine environment, attempting to apply a standard cosmetic mortar patch over this damage is a critical error. Trapping active chlorides and rusting steel beneath a new patch guarantees rapid, cyclical failure via the incipient anode effect.

Call Us
Email Us
Enquire Now

The Solution: Engineered Marine Reinstatement

To permanently secure the dock walls and prevent progressive structural failure, Structural Repairs engineered a comprehensive, multi-stage remediation strategy in strict accordance with BS EN 1504 concrete repair standards.

  1. Precision Breakout & Preparation We systematically broke out the diseased and delaminated concrete behind the failure planes to fully expose the circumference of the rusting rebar grid. Using vibration-free preparation techniques, we removed the chloride-contaminated matrix without causing micro-cracking to the remaining healthy structure.
  2. Anti-Corrosion Treatment & Steel Splicing The exposed, heavily oxidised steel reinforcement was mechanically cleaned back to bright metal. Where the steel had suffered critical section loss due to the aggressive saltwater attack, we spliced in new structural reinforcement. The entire exposed grid was then encapsulated in a high-performance, active anti-corrosion primer.
  3. High-Build Marine Reinstatement Because standard cements wash away in tidal zones, our engineers specified advanced, anti-washout marine micro-concretes. These high-strength, shrinkage-compensated repair mortars were meticulously applied to rebuild the massive structural profile of the dock walls, achieving full chemical cure even in the damp, salt-laden environment.
  4. Cathodic Protection Integration To permanently arrest future chloride attacks and protect the surrounding concrete, Galvanic Sacrificial Anodes were integrated into the repair zones. This electrochemical intervention scientifically draws the corrosive forces away from the structural steel, providing decades of passive protection.
Call Us
Email Us
Enquire Now

The Result: Engineering Certainty in Hostile Environments

By moving beyond standard patching and executing a forensic, engineering-led intervention, Structural Repairs successfully restored the structural geometry and load-bearing capacity of the dock walls. We safeguarded the embodied carbon of this historic asset, extending its safe operational lifespan and ensuring it remains fit to serve the modern maritime industry.
