Reduce risk, avoid programme delays and make decisions based on evidence – not assumptions.
Structural Diagnostics Aiding Disaster Recovery
When a major fire compromises a commercial asset, transit hub or heritage landmark, immediate and data-driven intervention is critical. Extreme temperatures fundamentally alter the chemical and structural properties of concrete, masonry and steel reinforcement.
Structural Repairs provides rapid-response diagnostic scanning, comprehensive safety reporting and engineered remediation. We partner with local authorities, principal contractors and structural engineers to secure hazardous environments, determine the viability of the remaining structure and execute precision repairs to preserve vital heritage facades.
Emergency Structural Diagnostics
& Scanning
In the immediate aftermath of a severe fire, the primary objective is safety. Before any remediation or demolition can begin, the site and its surrounding environs must be forensically assessed.
We deploy advanced Non-Destructive Testing (NDT) to evaluate the invisible damage caused by thermal shock and prolonged heat exposure:
- Ground Penetrating Radar (GPR): We scan deep into surviving columns, floors and retaining walls to assess the condition of the steel reinforcement and identify internal voiding caused by thermal expansion.
- Concrete Integrity Testing: Extreme heat causes concrete to dehydrate, crack and lose severe compressive strength (calcination). We utilise ultrasonic pulse velocity and rebound hammers to determine the exact depth of fire damage within the substrate.
- 3D Laser Scanning: We rapidly map the entire site to detect dangerous structural deflections, bowing walls and imminent collapse zones without putting surveying personnel at risk.
Stabilisation, Reinforcement
& Façade Retention
Losing a landmark building is devastating for a community. Where demolition of the wider structure is unavoidable, Structural Repairs specialises in the emergency stabilisation and long-term preservation of culturally significant facades.
If parts of the building can be saved, we engineer highly targeted interventions to restore load-bearing capacity:
- Emergency Propping & Façade Retention: We design and install heavy-duty temporary propping systems to secure unstable masonry panels and historic frontages while the dangerous internal structure is removed.
- Thermal Crack Stitching: Sudden cooling from firefighting efforts causes severe thermal shock and deep masonry fracturing. We deploy stainless steel helical ties and specialist grouts to stitch cracked brickwork back into a monolithic unit.
- Carbon Fibre Strengthening: For concrete columns and beams that have lost tensile strength but remain viable, we apply advanced carbon fibre reinforced polymer (CFRP) wrapping to rapidly restore structural capacity without adding significant mass.
- Resin & Grout Injection: We inject deep-penetrating structural resins to re-bind delaminated concrete and consolidate heat-damaged substrates.
Frequently Asked Questions:
Fire Damage Recovery & Diagnostics
We deploy advanced Non-Destructive Testing (NDT) methodologies from safe perimeters. By utilising precision 3D laser scanning and Ground Penetrating Radar (GPR) our engineers can capture highly accurate structural data without putting personnel inside the immediate hazard zone. This allows us to map critical deflections, bowing walls and internal voiding safely and remotely.
Extreme temperatures cause concrete to dehydrate and lose its compressive strength through a process called calcination. Furthermore the internal steel reinforcement expands under intense heat causing the surrounding concrete to crack and spall. The sudden application of cold water from high-pressure fire hoses also induces severe thermal shock which creates deep-seated fracturing across both concrete and historic masonry elements.
Yes. If our initial scanning confirms the front elevation retains sufficient foundational stability we can engineer a targeted preservation programme. We design and install heavy-duty emergency propping to secure the exterior frontage while the compromised interior is safely dismantled. Once the facade is isolated we utilise stainless steel crack stitching and deep-penetrating resins to consolidate the historic masonry.
Our comprehensive diagnostic reports are engineered for structural consultants, local city authorities and Tier 1 principal contractors. These stakeholders rely on our definitive NDT data to make high-stakes decisions regarding perimeter safety, controlled demolition parameters and the viability of long-term asset rehabilitation.
We understand that time is the most critical factor following a major blaze. Structural Repairs is equipped to mobilise highly qualified scanning technicians and geotechnical engineers rapidly across the UK. Backed by elite industry accreditations—including RISQS for highly regulated railway environments—we can seamlessly integrate into strict emergency site protocols and commence diagnostic operations without delay.

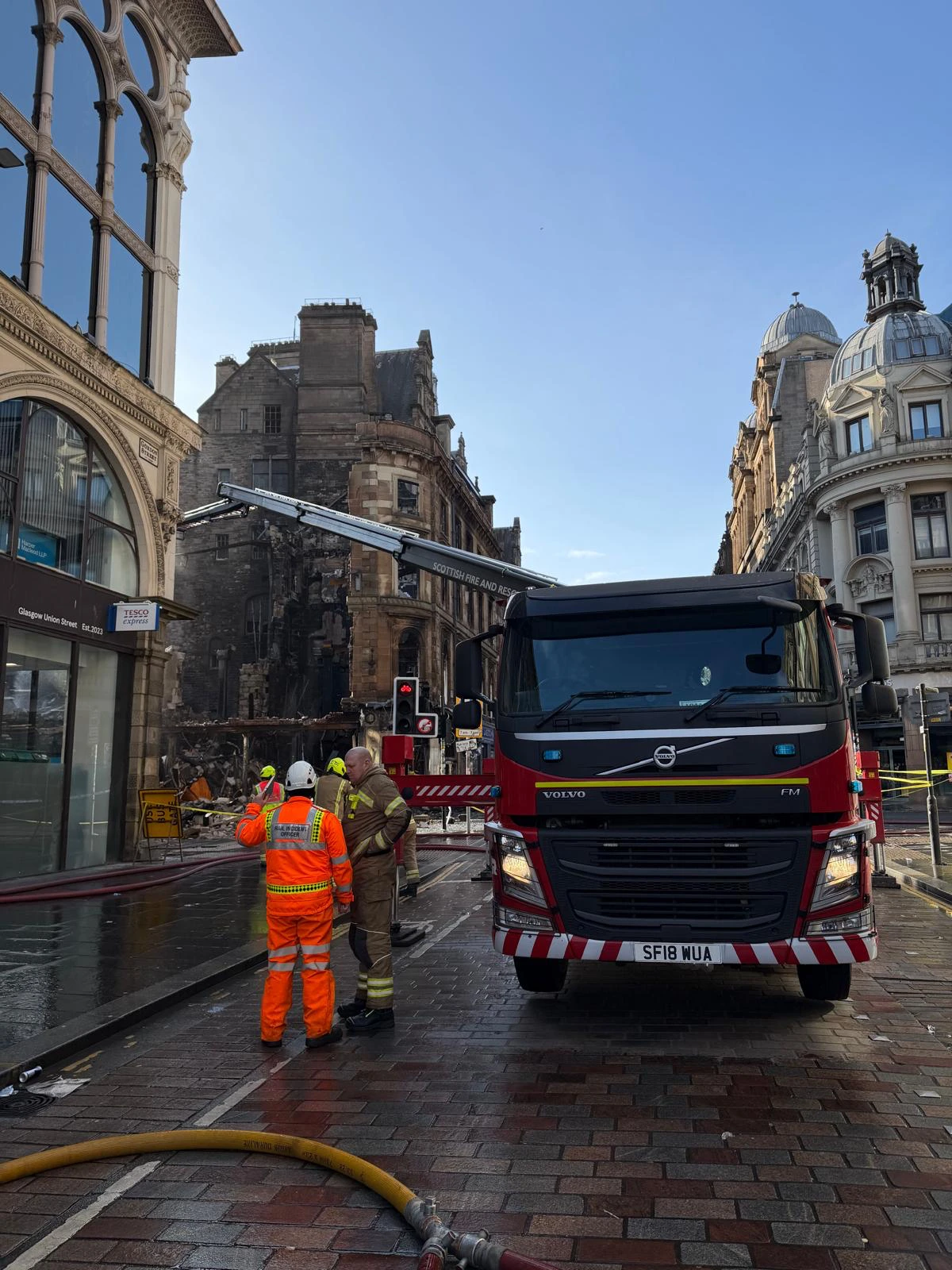

Before the engines have even left, the Structural Repairs team completing fire damage structural diagnostics at Union Street, Glasgow (March 26th 2026)
Emergency Deployment
When critical infrastructure is compromised by fire, time is of the essence. We are equipped to mobilise highly qualified scanning technicians and structural repair engineers to highly sensitive sites across the UK.
