Concrete Scanning

Via non-intrusive means of analysis, the Structural Repairs team are fully equipped to conduct a variety of comprehensive concrete scanning procedures to identify a range of sub ground elements.

Table Of Contents

1. What Is Concrete Scanning?

2. How Is Concrete Scanning Conducted?

3. What Can Concrete Scanning Detect?

4. Is Concrete Scanning Effective?

5. Why Is Concrete Scanning Required?

6. Our Concrete Scanning Services

7. Benefits Of Concrete Scanning?

What Is Concrete Scanning?

Concrete scanning is the act of reading what sits under a concrete surface via the use of non-intrusive technology.

This is done in order to identify whether there are elements sitting under a concrete’s surface or to obtain an understanding of a known element’s condition.

Concrete scanning is further able to identify whether anomalies such as voids or cracks exist under a concrete surface.

All of these scenarios are then interpret by our leading industry specialists who are readily available to help you with any endeavours you have in mind.

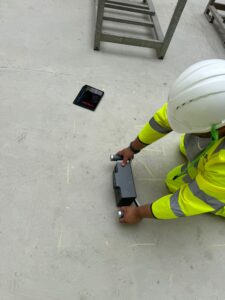

How Is Concrete Scanning Conducted?

Concrete scanning is the conducted via the use of non-intrusive technology such as ground penetrating radar (GPR), a cover meter, ferroscan instrument, ultrasonic scanning equipment and the like.

This technological equipment is able to non-intrusively penetrate your concrete structure and understand what is going on beyond its surface.

Once this has been conducted, industry specialists are then able to interpret the findings and report back to you on the condition of your concrete.

Additionally, recommendations regarding how to repair any poor condition found within the concrete are likewise provided.

Find Out More

What Can Concrete Scanning Detect?

Concrete scanning is able to detect a large range of different elements, depending on the technology which is being used.

Overall, however, and in general, it is able to identify elements such as pipes, metals, asphalt, cables, masonry and such.

Concrete scanning is further able to record and understand changes in material properties and any voids and cracks existing below the surface of a concrete structure.

This scanning method holds the ability to be conducted on a large variety of mediums beyond concrete such as rock, clay, sand, coil, ice, water, pavements and more.

In addition, this scanning method is likewise able to identify and communicate the condition in which a sub ground element or object is found to be in (e.g. corrosion, etc.)

Find Out More

Is Concrete Scanning Effective?

­Concrete scanning is an extremely effective scanning method.

Concrete scanning experts consider ground penetration radar (GPR) technology to be the best technique for scanning concrete.

GPR penetrates deeper than other methods.

The technology Structural Repairs use has better resolution than Ferroscan and the Cover Meter.  The detection is not limited to metallic objects like these two methods.

GPR is further able to detect changes in a concrete’s subsurface and can detect most materials including plastic, wood and voids.


Overall, however, GPR technology is known for its precise, effective and very successful outcomes as it is able to provide specialists and clients with full and comprehensive reports regarding the condition of a concrete structure.

Find Out More

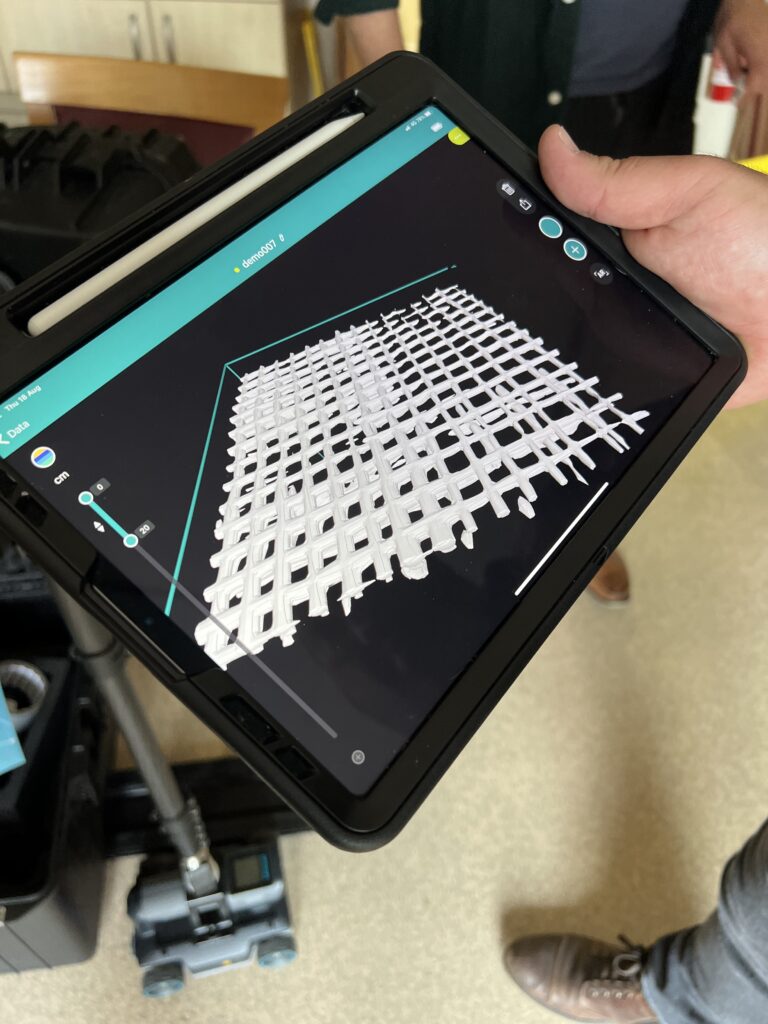

Reinforcement Scan

Why Is Concrete Scanning Required?

Concrete scanning if often required due to a large range of different reasons.

For example, it is often necessary to understand the condition of any reinforcing bars lying at the core of the concrete structure as a means to understand its structural stability and strength.

Concrete scanning is a common practice in renovation projects that involve cutting or coring of concrete slabs because it is crucial to understand if there is anything beneath the surface of these slabs.

Failing to identify what is beneath the surface of a concrete slab could be potentially dangerous. It could result in injuring workers and causing accidents.

Furthermore, cutting into elements such as electrical cables is not only extremely dangerous and potentially deadly, but is likewise very costly as this would disrupt the electrical supply, cause technical damage and delay the project.

Concrete scanning can also be used as a preventative measure to maintenance the healthy of your structure through proactive, rather than reaction, action.

Find Out More

How Serious Rebar Corrosion Can Be

Benefits of Scanning Fire Damaged Concrete.

Concrete scanning if often required due to a large range of different reasons.

One of the main advantages of using concrete within the structure of a building is the resistance it has against fire.

Fires typically visually affect most building materials, making it easy to identify them as unfit for use and later replace them.

Concrete on the other hand changes very little in respect of the shape and size making it much more difficult to assess for damage.

Concrete loses strength when heated above 300°C.

Currently, people enter potentially dangerous and unstable parts of the building to assess damage and propose suitable repair methods or decide if demolition is necessary.

Therefore, there is a greater need for new assessment technology.

Our GPR and Ultrasound technology is the best non intrusive solution to survey and identify any voids and delamination.  industry specialists are then able to interpret the findings and report back to you on the condition of your concrete.

Find Out More

Fire Damaged Concrete Soffit

Our Concrete Scanning Services

Ground Penetration Radar

Our Ground Penetrating Radar services operate on a variety of difference concrete surfaces and structures.

They likewise hold the ability to identify and analyse an abundance of different sub ground elements and objects as a means to give you a clear picture of what is going on underneath your concrete.

As well as helping you identify the current conditions of your sub ground concrete, we are further able to assist you as we put into practice the remedial recommendations we have expertly suggested.

Before leaving the job site, Structural Repairs also make sure we communicate the best ways for you to maintain a healthy upkeep of your concrete going forward.

Rebar Corrosion Survey

Our comprehensive Rebar Corrosion Survey services utilise a range of non-intrusive methods in order to scan, identify and understand the current condition of the reinforcing bars under you concrete.

Via industry leading technology, we are able to provide you with a concise and comprehensive report. This will advise of exactly what is going on with your rebar.

Structural Repairs
  • Extend our services and offer to place the recommendations we suggest into practice.
  • Hold an extensive amount specialist knowledge and skill when it comes the why’s and how’s of your rebar corrosion.
  • Conduct rebar remedies from entirely replacing them or treating them accordingly.

What Are The Benefits Of Concrete Scanning?

Concrete scanning holds a plethora of different benefits. For example, it holds the ability to preserve the structural integrity of your concrete given that slicing through embedded elements can weaken the concrete and impact its structural strength.

Understanding what is going on under the surface of your concrete thus is likewise a time-consuming endeavour as it holds the ability to prevent large errors from taking place.

Cutting through a structure without being aware of any embedded elements can bring a project to a quick halt.

Avoiding damage and errors leads to cost savings as the project runs smoothly, thereby eliminating the need to repair damages, pay fines or penalties, or replace equipment or materials.

In all, a smooth project will allow for better for business to be conducted and will leave clients significantly more satisfied.

Find Out More

Concrete Scan
